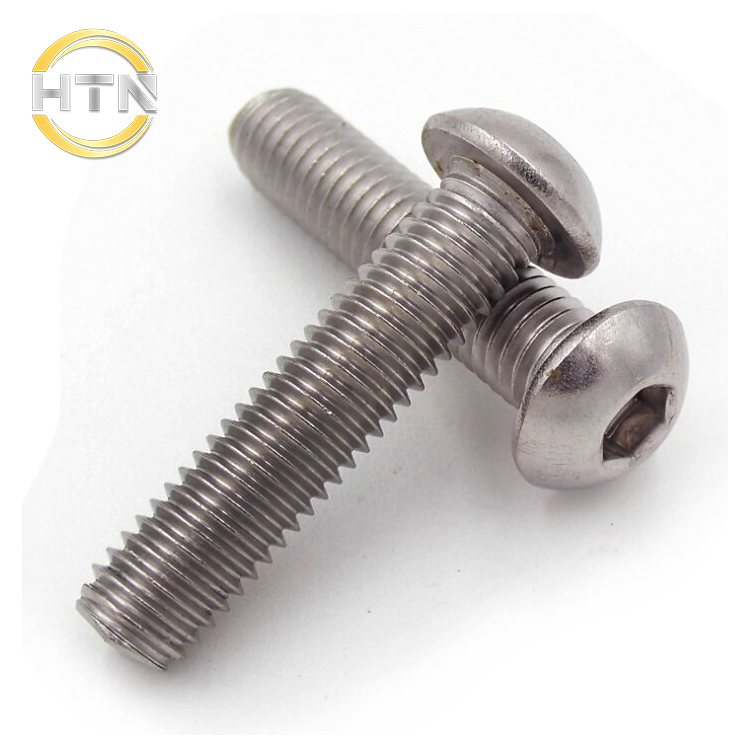

ISO 7380 Gr5 M5x10mm Titan Knopfkopf Steckdose Schrauben
Category:
Titan-Bearbeitungsteil
Material: Grad 5 Titan (Ti-6Al-4V).
Gewindegröße: M5.
Länge: 10mm.
Kopfstil: Knopfkopf.
Antriebstyp: Interne Hex.
|
|
Details
Technische Spezifikationen
Produktname: ISO7380 M5x10mm Titanbolzen
Material: Grad 5 Titan (Ti-6Al-4V)
Gewindegröße: M5
Länge: 10mm
Kopfstil: Knopfkopf
Antriebstyp: Interne Hex
Zugfestigkeit: 900MPa (minimum)
Ausbeutefestigkeit: 830MPa (minimum)
Härte: 34-36 HRC
Gewindepitch: 0,8 mm
Oberflächenverbindung: poliert, eloxiert oder natürlich
| Gewindemessung d | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | |
| P | Pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 |
| b | Ref. | 18 | 20 | 22 | 24 | 28 | 32 | 36 | 44 |
| da | max | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 17.7 |
| dk | max | 5.7 | 7.6 | 9.5 | 10.5 | 14 | 17.5 | 21 | 28 |
| min | 5.4 | 7.24 | 9.14 | 10.07 | 13.57 | 17.07 | 20.48 | 27.48 | |
| d1 | Ref. | 2.6 | 3.8 | 5 | 6 | 7.7 | 10 | 12 | 16 |
| ds | max | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 |
| min | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 15.73 | |
| dw | min | 5 | 6.84 | 8.74 | 9.57 | 13.07 | 16.57 | 19.68 | 26.68 |
| e | min | 2.303 | 2.873 | 3.443 | 4.583 | 5.723 | 6.863 | 9.149 | 11.429 |
| k | max | 1.65 | 2.2 | 2.75 | 3.3 | 4.4 | 5.5 | 6.6 | 8.8 |
| min | 1.4 | 1.95 | 2.5 | 3 | 4.1 | 5.2 | 6.24 | 8.44 | |
| r3 | max | 3.7 | 4.6 | 5.75 | 6.15 | 7.95 | 9.8 | 11.2 | 15.3 |
| min | 3.3 | 4.2 | 5.25 | 5.65 | 7.45 | 9.2 | 10.5 | 14.5 | |
| r1 | min | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 |
| r2 | min | 0.3 | 0.4 | 0.45 | 0.5 | 0.7 | 0.7 | 1.1 | 1.1 |
| s | Nominal Size | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 |
| max | 2.08 | 2.58 | 3.08 | 4.095 | 5.14 | 6.14 | 8.175 | 10.175 | |
| min | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | |
| t | min | 1.04 | 1.3 | 1.56 | 2.08 | 2.6 | 3.12 | 4.16 | 5.2 |
| w | min | 0.2 | 0.3 | 0.38 | 0.74 | 1.05 | 1.45 | 1.63 | 2.25 |
| Minimum Zuglast (N) | 8.8② | 3220 | 5620 | 9080 | 12900 | 23400 | 37100 | 53900 | 100000 |
| 10.9② | 4180 | 7300 | 11800 | 16700 | 30500 | 48200 | 70200 | 130000 | |
| 12.9/12.9② | 4910 | 8560 | 13800 | 19600 | 35700 | 56600 | 82400 | 154000 | |
| 70③ | 2810 | 4910 | 7950 | 11200 | 20400 | 32400 | 47200 | 87900 | |
| 80③ | 3220 | 5620 | 9080 | 12900 | 23400 | 37100 | 53900 | 100000 | |
